Ford FD6700S Diesel Generator

Click image to view gallery

Ford FD6700S Diesel Generator

Code: FD6700S
Barcode: 0814726023379
Stock: In Stock
RRP: £1,269.99
Ford Official Licensed Product Logo Built Ford Tough Warranty Logo

Click here to find your local dealer

FD6700S

Built Ford Tough

Built Ford Tough

The 7.6HP, 418cc engine powers a copper winded alternator with AVR protection to produce a continuous power of 4.5kW (5.63kVA) and a maximum power of 5kW (6.25kVA). The Automatic Voltage Regulator (AVR) keeps the output voltage to within 5% of it's rated value, allowing safe use of electrical items within the home. The Ford Canopied Diesel Generators feature an easy to lift top cover for easy access to the fuel tank and also for routine maintenance.The rotating castors on the base mean that the generator can be moved in all directions for better manoeuvrability and include a brake for keeping the unit in place.

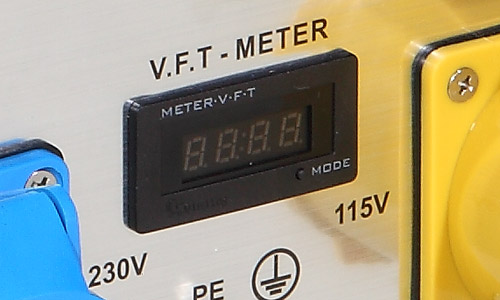

Digital 3-in-1 Meter

Digital 3-in-1 Meter

The digital 3-in-1 meter located on the generators control panel displays the current volts and frequency of the generator. The digital meter also shows the hours run, ideal for knowing when services are needed.

Dual Voltage

Automatic Dual Voltage

Automatic Dual voltage switch allows the generator to be switched between 110 volts and 230 volts. This allows the generator to be used for site work while in 110 volt mode which is both safer and mandatory in most work sites in the UK.

Ford Official Licensed Product

Ford Official Licensed Product

All Ford Power Equipment products are Ford Official Licensed and have the Ford Official Licensed Product label, providing the customer confidence when buying Ford Power Equipment products.

Description

  • Top cover can be lifted up for easy access to fuel tank and maintenance work.
  • Single cylinder 4 stroke vertical air cooled diesel engine.
  • Low oil sensor for engine protection (1.6 litre engine oil capacity).
  • Digital 3 in 1 meter measures Voltage, Frequency and Run Time.
  • Automatic Voltage Regulator (AVR) to keep output (THD) to within 5%.
  • Electric start using maintenance free sealed 12V DC 30Ah battery.
  • Improved fuel supply system to avoid getting air in to the fuel lines during operation and maintenance.
  • Rotating castors to allow multi-directional movement.

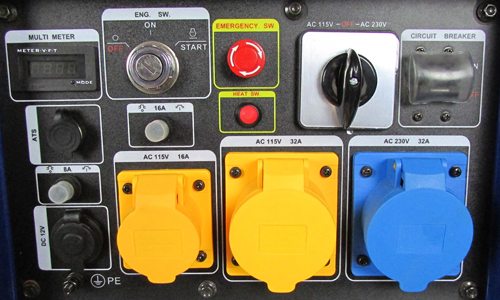

  • Extra safety features such as separate circuit breaker for each socket and an emergency stop button.

Specifications

Peak Output 5.00kw
Maximum Output 5.00kw
Continuous Output 4.5kw
Displacement 418cc
Horse Power 7.6hp
Phase Single
Run Time (50% Load) 15h
Run Time (100% Load) 8h
Sockets 1 x 115V 16A, 1 x 115V 32A & 1 x 230V 32A
Fuel Type Diesel
Fuel Tank Capacity 15L
Frequency 50hz
Noise Level 72dB(A) @ 7m
Low Oil Sensor Yes
AVR Yes
ATS Ready No
Starter Type Electric
Frame Soundproof Canopy
Frame Finish Powder Coated
Dimensions (LWH) 910 x 532 x 770mm
Packaging Dimensions (LWH) 930 x 535 x 775mm
Net Weight 163kg
Gross Weight 168kg
